Structures
| Salt Creek Bridge |
The Salt Creek Bridge, located at milepost 563.2, or 12 miles east of Oakridge on Highway 58, is the longest bridge between Oakridge and Cascade Summit. It is 510 feet long and built on a 1.7 percent grade. At this point, the tracks make a horsehoe curve and head geographically west, back toward Oakridge. This bridge is an American Bridge Company type built in 1924.

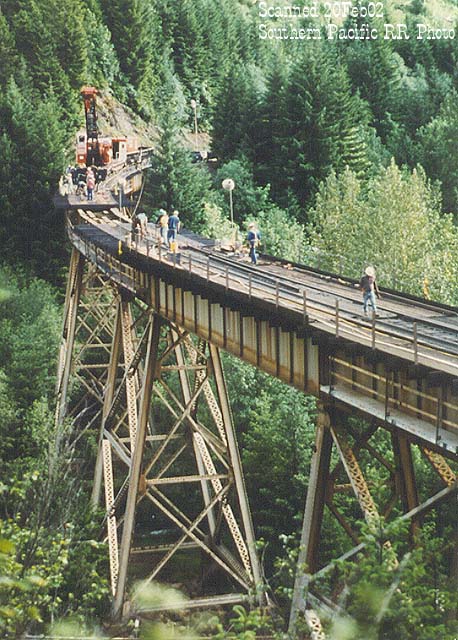

This section is made up of three categories. The first consisting of general photos of the bridge, then a section covering the bridge redecking project in 1993, and concluding with the ICC Valuation report for the bridge. Clicking the thumbnails will open the photo in a new window.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
ICC Valuation Report
Statement showing property changes from September 1, 1926, to December 31, 1927 |
|||||
Character of property and description |
Date |
Units |
Number of |
Cost/unit |
Total |
| Account No. 6 Title Bridges, Trestles, & Culverts | |||||
| Steel Bridges | |||||
| Bridge 563-A | |||||
| Single Track-Length 515' over Salt Creek | |||||
| sta. "AD" 537+67 to "AD" 532+52 | |||||
| Substructure... | |||||
| ....Concrete abutments, concrete foundations and steel towers | |||||
| ....Excavation-Common | Cu Yd | 209 | .50 | 105 | |
| ....Excavation-Loose rock | " | 425 | .70 | 298 | |
| ....Excavation-Solid rock | " | 1338 | 1.25 | 1,673 | |
| ....Excavation-Wet 5' to 10' | " | 2102 | 2.55 | 5,360 | |
| ....Plain Concrete | 1926 | " | 1220 | 10.25 | 12,505 |
| ....Steel - Towers | " | Lbs. | 358,812 | .0414 | 14,855 |
| Superstructure... | |||||
| ....5 - 30', 1 - 35', 2 - 60' and 3 - 70' Deck Plate Girder Spans | |||||
| ....Steel - Girders | 1926 | Lbs. | 474,635 | .0414 | 19,650 |
| ....Timber - Untreated Fir | " | m.b.m | 16.198 | 34.50 | 559 |
| ....Timber-Treated fir | " | " | 53.05 | 8 | |
| ....Bridge Signs - C.S. 11 | " | Each | 2 | 1.00 | 2.00 |
| ..........Total | $120,470.05 | ||||
| ..........Interest during construction | $10,368.38 | ||||
| ..........Final | $130,838.43 | ||||
