Tunnel #3

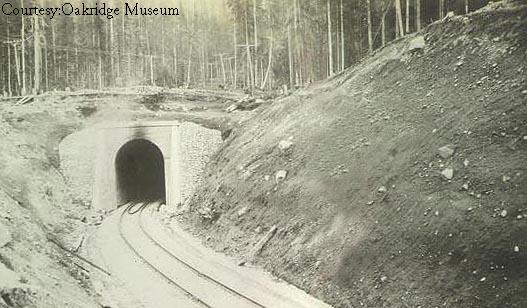

East portal of Tunnel #3.




West portal of Tunnel #3.


ICC Valuation Report

Statement showing property changes from September 1, 1926, to December 31, 1927

line
#
Character of property and description
Date
Units
Number of
units
Cost/unit
$$$
Total
$$$
1 Account No. 5 Title Tunnels and Subways




2 Tunnel No.3 MP 537.8 Single Track Driven




3 Total Length 3655 ft. (sta. "AL" 343+56 to "AL" 307+02)




4 Lined Length concrete-100 ft. per plans 19612 & C.S.347




5 Lined Length timber-3649 ft.




6 Two concrete portals, plans 18216 & 40153




7 Excavation-solid rock
Cu Yd 78806 3.70 291,582
8 Excavation-wet (subgrade)
" 110 3.70 407
9 Portal backfill-loose rock
" 196 .49 96
10 Riprap-hand placed (portal protection)
" 91 2.00 182
11 Overhaul
Cu Yd Sta 1,441,209 .0125 18,015

12 -Lining-




13 ...Reinforced concrete 1926 Cu Yd 332 13.00 4,316
14 ...Plain concrete " " 554 11.50 6141
15 ...Timber-untreated fir " m.b.m. 1,586.339 40.00 63,454
16 ...Timber-Redwood " " 34.265 45.00 1,542

17 Packing-cordwood " cord 1,589 7.00 11,123
18 Reinforcing bars " lbs. 25,509 .04 1,020
19 Iron " " 9,829 .05 491
20 Timber-cedar (drain boxes) 1927 m.b.m. 18.080 33.00 597
21 Creosote paint 1926 gallon 1,013 .70 709
22 Tunnel Sign-C.S. 9 " Each 2 1.00 2
23 Pump fire extinguisher (5 gallon Pyrene) 1927 Each 2 20.00 40
24 Fire Ladders 24 ft. " " 2 6.00 12
25 Fire Ladders 16 ft. " " 2 4.00 8
26 Fire barrels & covers-concrete " " 4 5.00 20
27 Fire buckets-metal, cone shaped " " 8 .25 2
28 Axes, single bitt " " 2 1.00 2

29 ..........Total

$548,800.96
30 ..........Interest during construction

$29,878.28
31 ..........Final

$578,679.24
